LttL Squeaky Machine
The Little Squeaky Machine is a hardware reference platform for the LttL Weirdo Soundbeast.
We are going to release the machine soon, get a ping when we are ready to ship
Join the waitinglist
Features
- The Little Squeaky Machine runs the LttL Weirdo Firmware on the ESP32S3 chip, controlling the LttL Squeaky Machine for sound generation and control in real time.
- 🔈 We use the SGLT5000 codec, offering advanced audio processing with stereo line input, microphone input with bias, stereo line output, and a capless stereo headphone amplifier. The codec comes with some needed mixing and filtering capabilities.
- 🎹 MIDI in/out is provided through TRS-A connectors, but also the firmware includes MIDI over USB and Bluetooth! Just connect your existing gear or just use your mobile phone to power and control this machine.
- 🫳 We included a gyroscope for movement tracking to control sounds and a capability to use 8 touch inputs.
- 🎛️ Four encoders to control the machine.
- 📺 One nice OLED display for an intuitive UI design.
- ⌨️The machine comes with 25x hotswappable tactile switches and is backlit with full-color LEDs 🚥. Get you in the party mood! 🥳

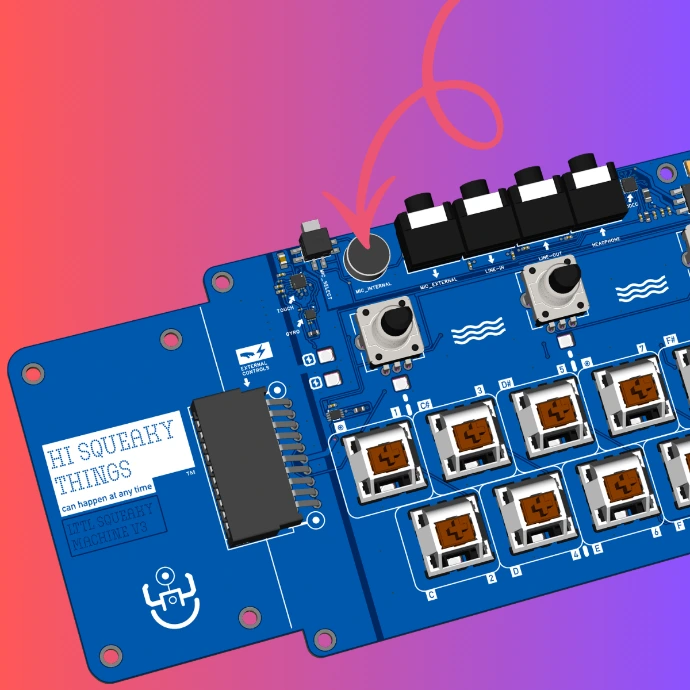

Microphone (in/ex)
Built-in mic for doing sampling and vocoder stuff. Switchable internal or external mic use.

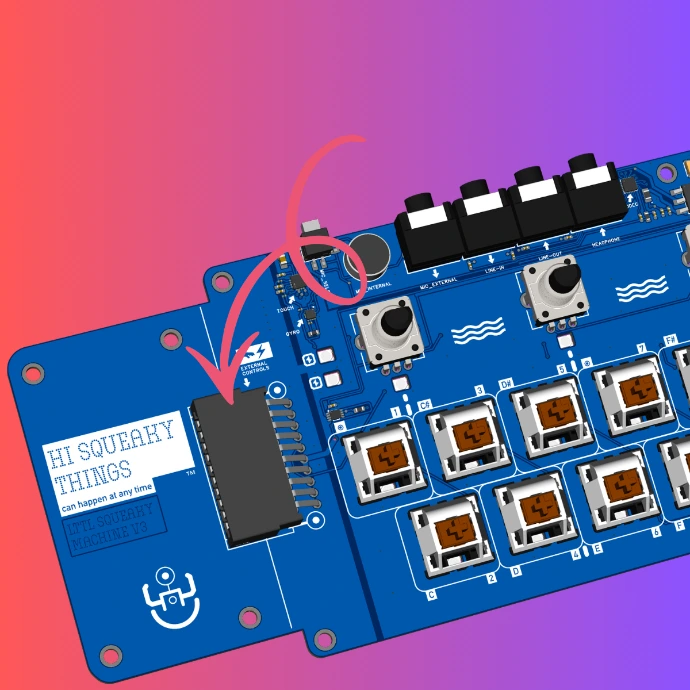

Extendable Touch & Sensor Connector
Get some extendables to explore new ways to create sounds.
We already included an 🫳 8x input touch sensor on the motherboard, which is also exposed to this connector.
Also the edge-connector provide power, LED control and I2C for interfacing with external sensors.

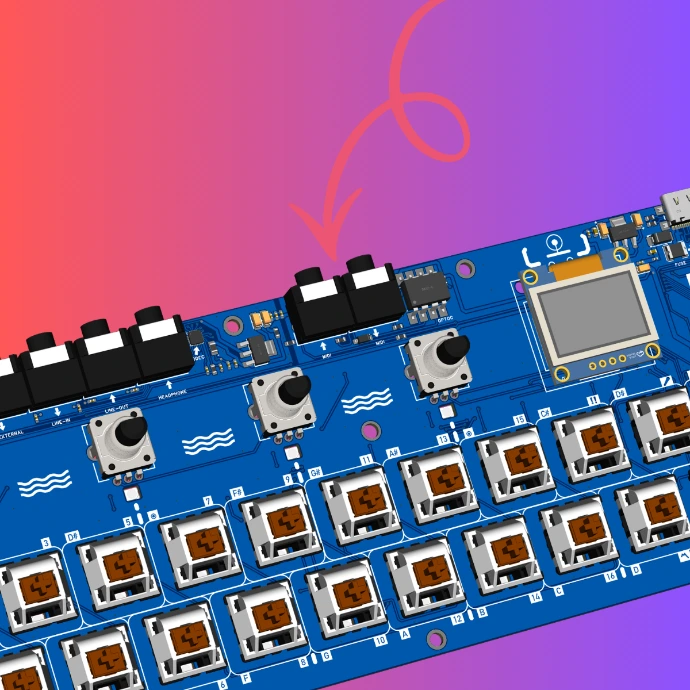

MIDI (in/out)
MIDI in/out is provided through TRS-A connectors.
The ❤️ of the machine is also capable of providing MIDI over USB and Bluetooth!
